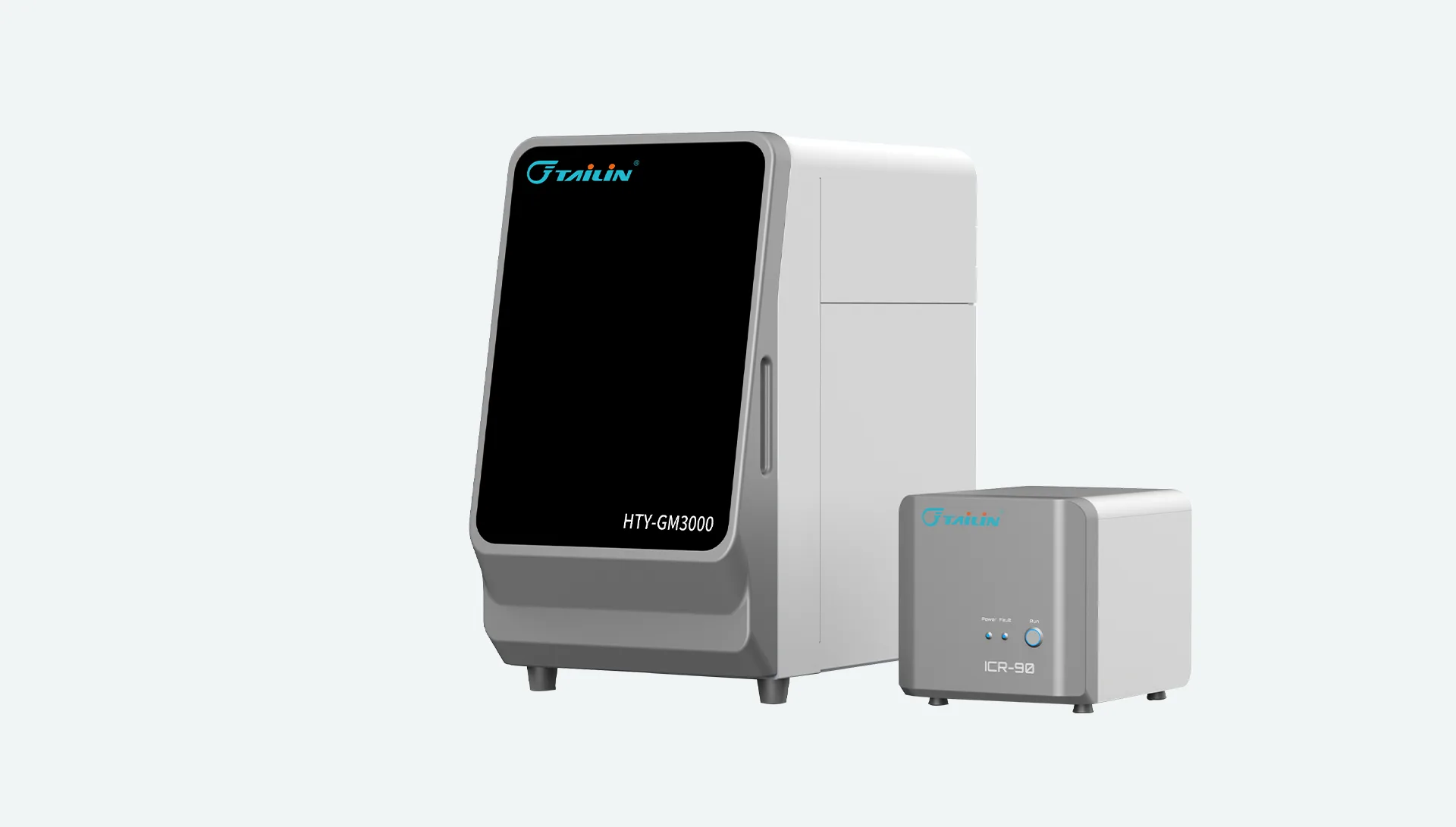

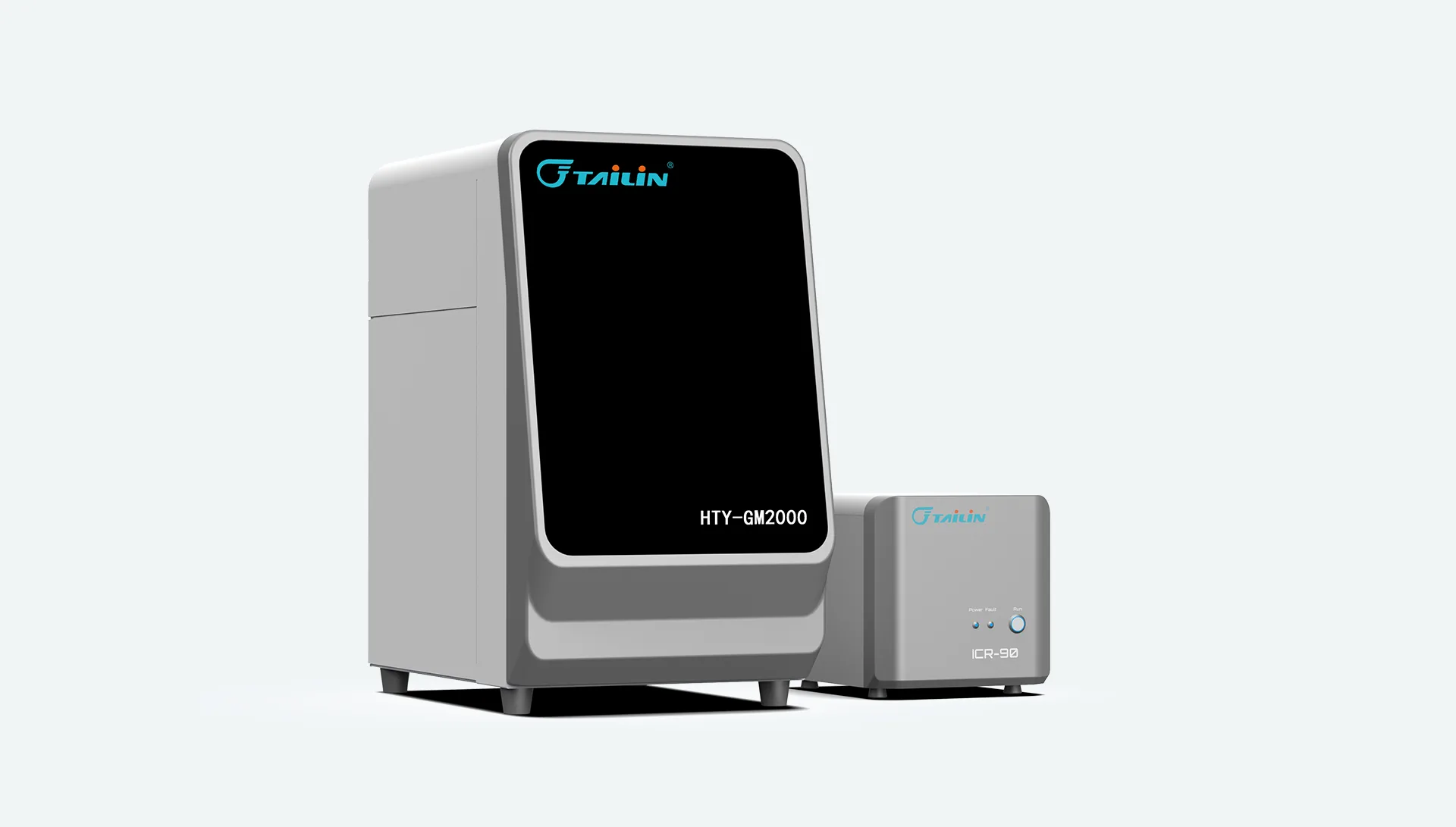

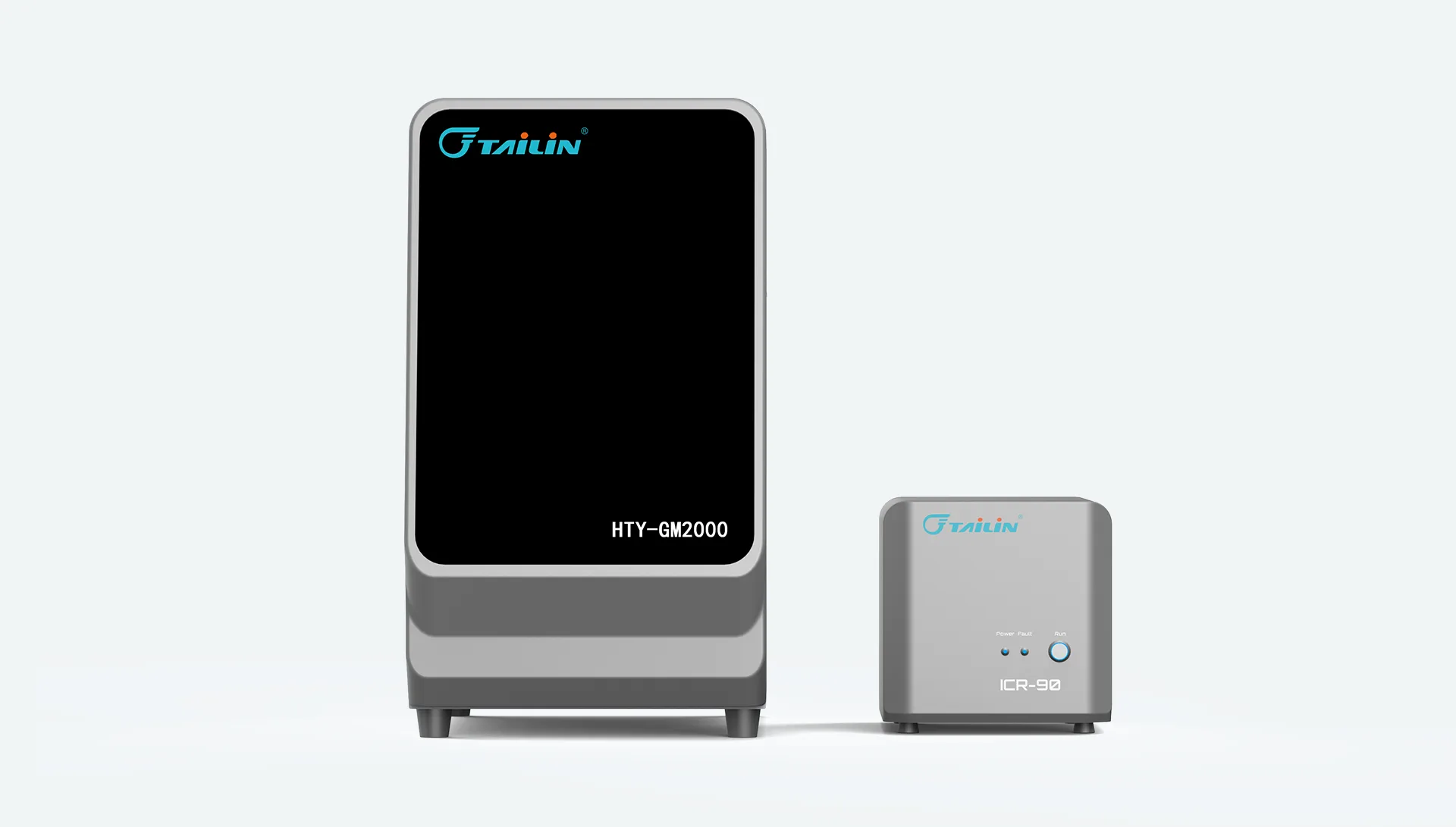

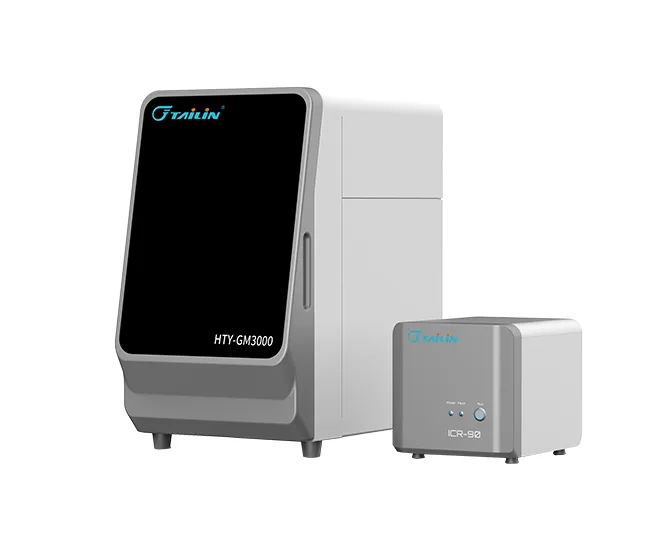

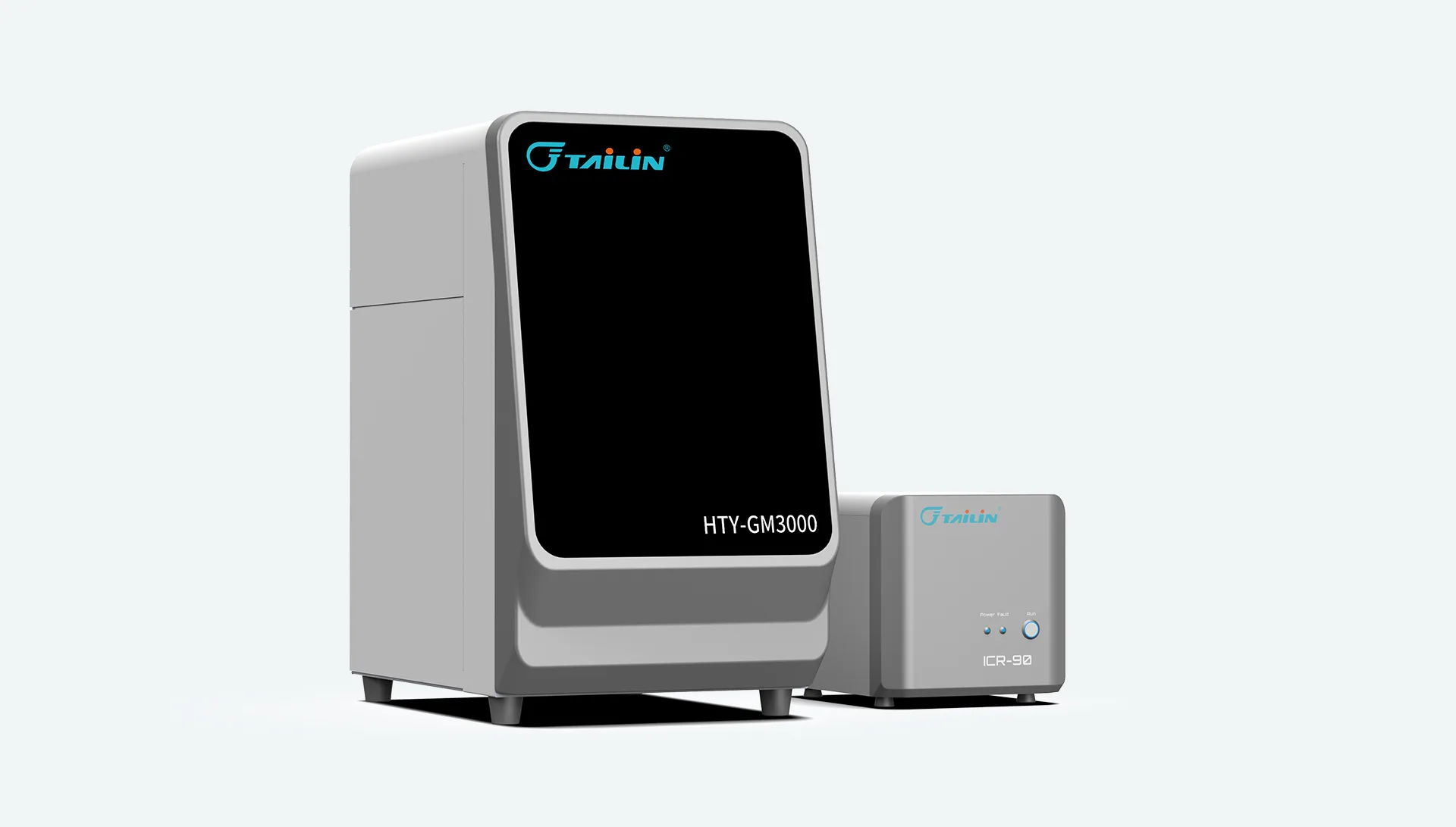

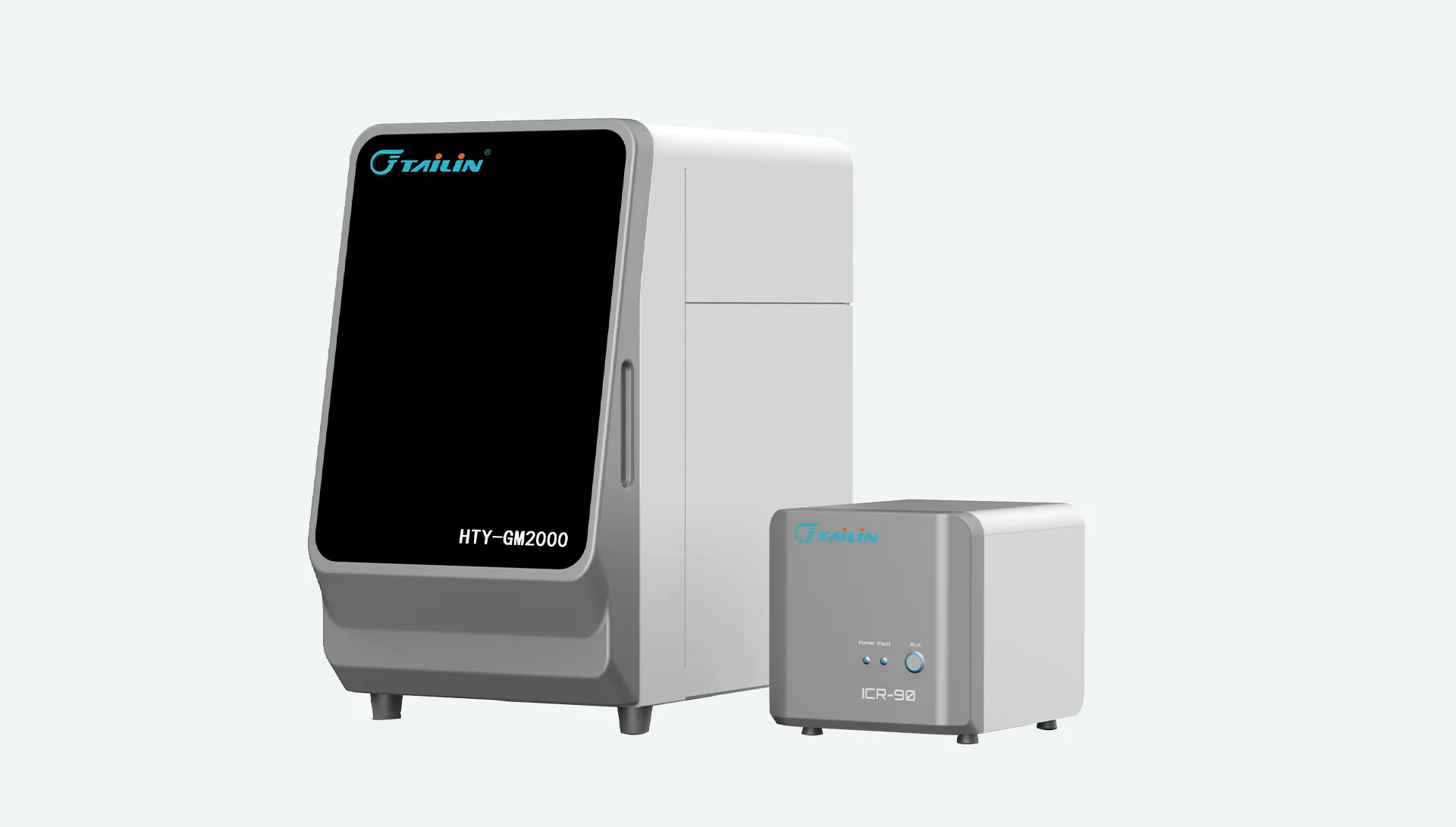

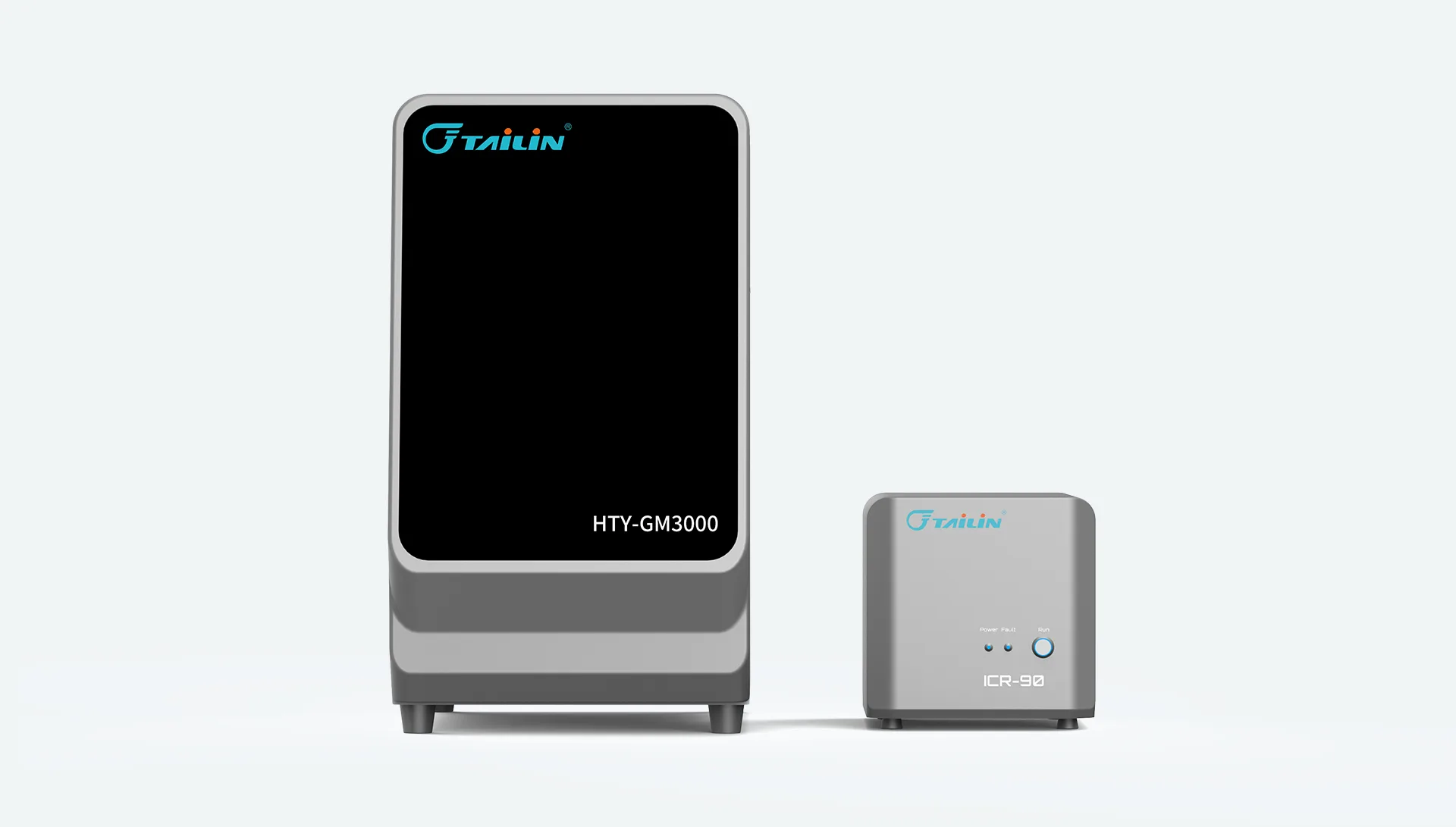

The Total Organic Carbon (TOC) Analyzer HTY-GM2000/3000 uses UV, Persulfate Oxidation, and Membrane Conductometric Detection to measure organic carbon in water, ideal for detecting the TOC in purified water, Water for Injection (WFI), and cleaning validation.
| HTY-GM2000 | HTY-GM3000 |
| Test Range: (0.0001-20.000)mg/L | Test Range: (0.0001-30.000)mg/L |
| TIC: (0.0001-5.000)mg/L | TIC: (0.0001-5.000)mg/L |
| Repeatability: ≤3% | Repeatability: ≤2% |
| Indication Accuracy: ±5% | Indication Accuracy: ±3% |
| Analysis Time: 3min | Analysis Time: 2.5min |
| UV Wavelength: 185nm&254nm | UV Wavelength: 185nm&254nm |
| Sample Temperature: (1-95）℃ | Sample Temperature: (1-95）℃ |
| R.H：≤85%RH | R.H：≤85%RH |
| Power Supply：(100-240)VAC | Power Supply：(100-240)VAC |
| Rated Power：100W | Rated Power：100W |
| Power Supply Frequency：50HZ | Power Supply Frequency：50HZ |
| Weight：30kg | Weight：30kg |
| Dimensions：480mm×300mm×540mm | Dimensions：480mm×300mm×540mm |
Applied in testing purified water, water for injection & cleaning validation (TOC method) in the pharmaceutical industry, and test sewage and drinking water in the environmental protection and municipal sectors.
This product can be used in the detection of pharmaceutical and drinking water, verification of cleanliness in the pharmaceutical industry, control of TOC (Total Organic Carbon) in the biochemical industry, and detection of sewage and wastewater in environmental monitoring.
The product utilizes a thin-film conductivity detection principle. It oxidizes organic matter in samples into carbon dioxide through chemical reagents and measures the conductivity change to calculate the total organic carbon concentration.
Yes, this product features a fully automated design. It can automatically complete sample collection, reagent addition, sample acidification and oxidation, reaction signal acquisition and measurement, and waste liquid discharge. Additionally, the instrument has a pipeline cleaning function to effectively avoid sample cross-contamination.
The system is fully compliant with GMP/GLP and 21 CFR Part 11, featuring electronic signatures, a comprehensive audit trail, and multi-level user access control.
