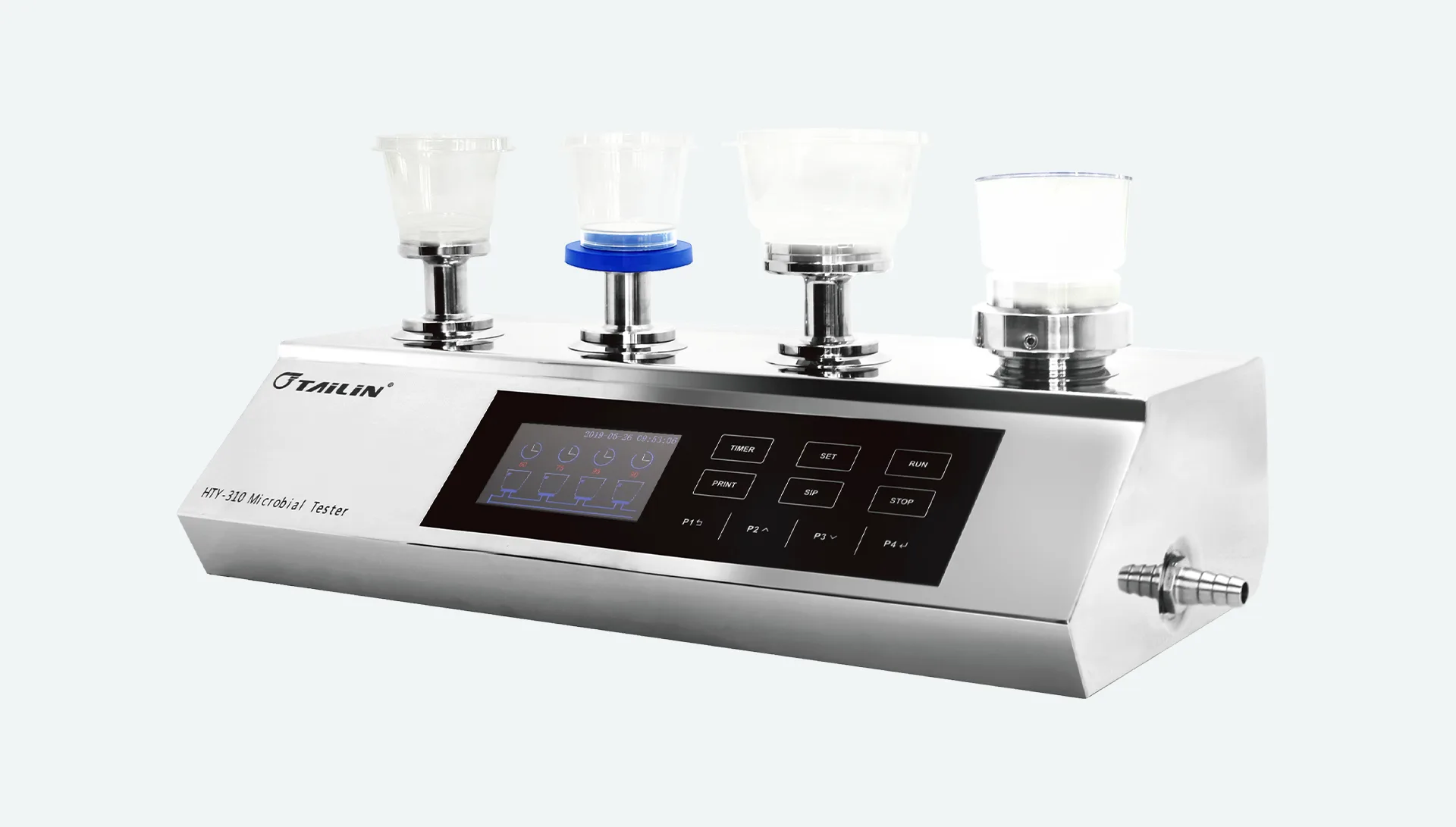

HTY-310

Microbial Limit Tester

The HTY-310 Microbial Limit Tester is a specialized device designed according to pharmacopeia requirements. It features four pump heads, SIP sterilization, high-performance diaphragm pump, and direct waste discharge. By using different pump heads with funnels or canisters, it forms a complete membrane-filtration setup. During testing, the sample is filtered to retain microorganisms on the membrane, which are then cultured into visible colonies for counting to determine microbial levels.

Uses a 32-bit ARM Microcontroller, high performance processor, digital control display and operation

Test results could be printed, user-friendly recording and management

Multiple Pump Heads Options, compatible with various consumables, quick assembly and disassembly, and capable of steam sterilization

Features

  • Color LCD screen with tempered glass touch panel.
  • Built-in SIP automatic disinfection program.
  • Countdown running function, different pump head can be set for different running times.
  • Four types of pump heads are freely selectable, and the pump heads are resistant to 121°C moist heat sterilization.
  • The pump head can be quickly sterilizedwith a flame gun for continuous experimental operation.
  • Built-in diaphragm pump, direct drainage, no need for filter bottles.
  • Built-in check valve to eliminate backflow and prevent contamination.

Specifications

Power: AC220V/50Hz Flow rate: 1500mL/min (single pump)
Consumables: S60 filtration funnel, F47/F60/F47B Noise: ≤65dB (A) (under load)
Dimensions: 500X260X120mm Body Material: 316L Stainless Steel
Weight: 13kg (with PF47, PB47 ) / 14kg (with PF60 ) / 15kg (with PS60)

Applications

Microbial Limit Testing is used to determine whether a non-sterile pharmaceutical product complies with an established specification for microbial quality.

Pharmaceuticals

Microbial limit testing of purified water, water for injection, and other drugs and preparations.

Food & Beverage

Total colony count in beverages, mineral water, and purified water.

Disease Control

Total bacterial count and pathogen detection in water samples such as air-conditioning condensate and drinking water.
