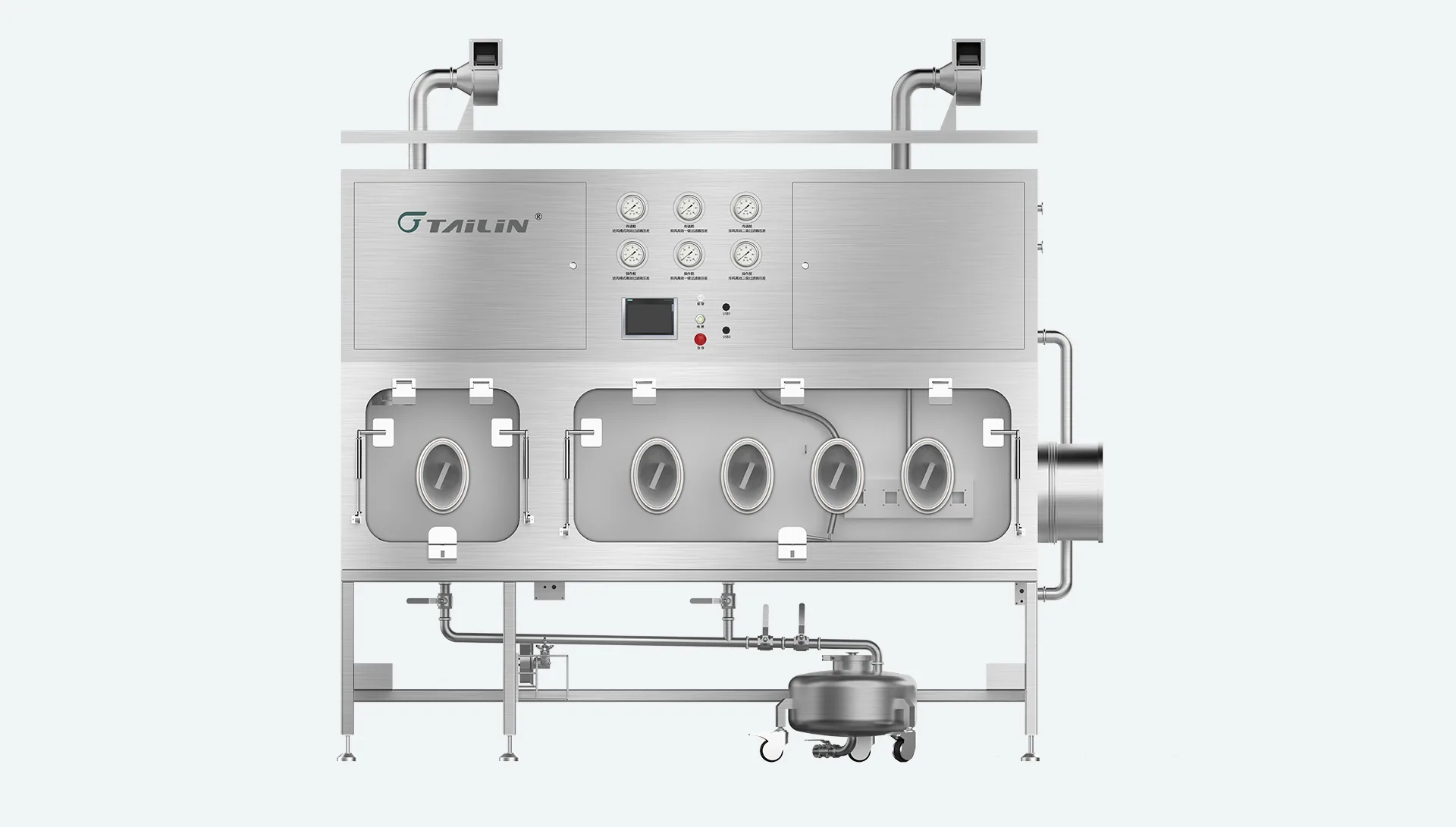

The Isolator for Weighing & Sampling is mainly used for personal protection in the powder handling process.
Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.
| Fresh Air Volume: ≥200m³/h | Net Weight: ≈ 700kg |
| Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa | Power: 220V, 2.0kw (isolator only) |
| Operation Chamber Space (mm): 1800x750x800(L*W*H) | Transfer Chamber Space (mm): 800x750x800(L*W*H) |
| Doors: All doors are equipped with inflatable seal, the observation window is made of 15mm thickness tempered glass | |
| It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor. |
Used in the laboratory for weighing and sampling.
