Isolator for Crude Peptide Dissolution

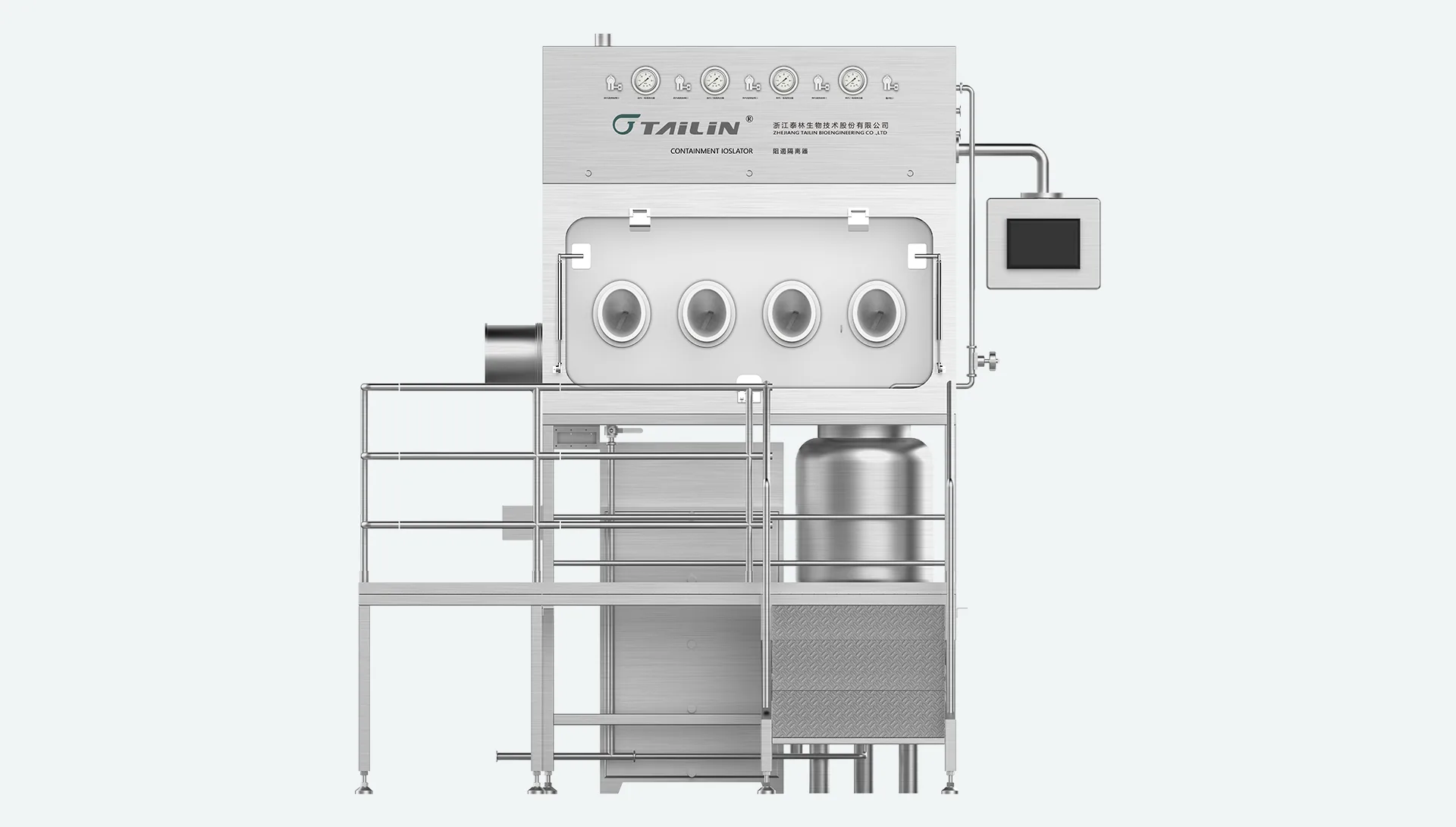

Containment Isolator

Tailin Containment Isolator is designed to protect operators during operations such as weighing, dispensing, drying, pressing, and filling of highly potent and toxic products. It is mainly applied in pharmaceuticals, cosmetics, bioproduct research, and physico-chemical laboratory studies. The system generates turbulent airflow through a high-pressure exhaust fan, maintaining negative pressure inside the working area. This design effectively prevents cross-contamination between internal and external environments, ensuring the safety of both personnel and the surrounding environment.

The isolator chamber is equipped with independent air handling unit

The front door is customized and supported by gas spring which is hatchback opened for good accessibility to the equipments

A purified water interface is installed in the isolator to fill the purified water into the container for dissolution. And the dissolved solution flows out through the valve installed at the bottom

Features

  • Meet OEB5 design requirements, OEL<0.1μg/m³.
  • Fully explosion-proof design which meets the EXd II BT4 requirements.
  • Integrated liquid dispensing container for continuous operation of weighing and feeding.

Specifications

Fresh Air Supply Volume: ≥100m³/h Operation Chamber Space (mm): 1800x750x800(L*W*H)
Public Utilities: Clean compressed air 0.6Mpa≤P≤0.8Mpa Net Weight : 500kg
Overall Size (mm) : 3600x1350x3200(L*W*H) Power: 380V, 1.5kw
Doors: All doors are equipped with inflatable seal, the observation window is made of 15mm thickness tempered glass It is equipped with an exhaust port on the isolator top, and the piping is connected to the outdoor.

Applications

Used for the dissolution of crude peptides during the API processing.

High-Potency Laboratory

Weighing, dispensing, sampling, solution preparation, analysis, moisture titration, infrared scanning, and other operations.

Active Pharmaceutical Ingredients (APIs)

Centrifugation, filtration, drying, mixing, milling, weighing, dispensing, and related processes.

Solid Dosage Forms

Granulation, drying, mixing, tablet compression, coating, and other solid formulation processes.
