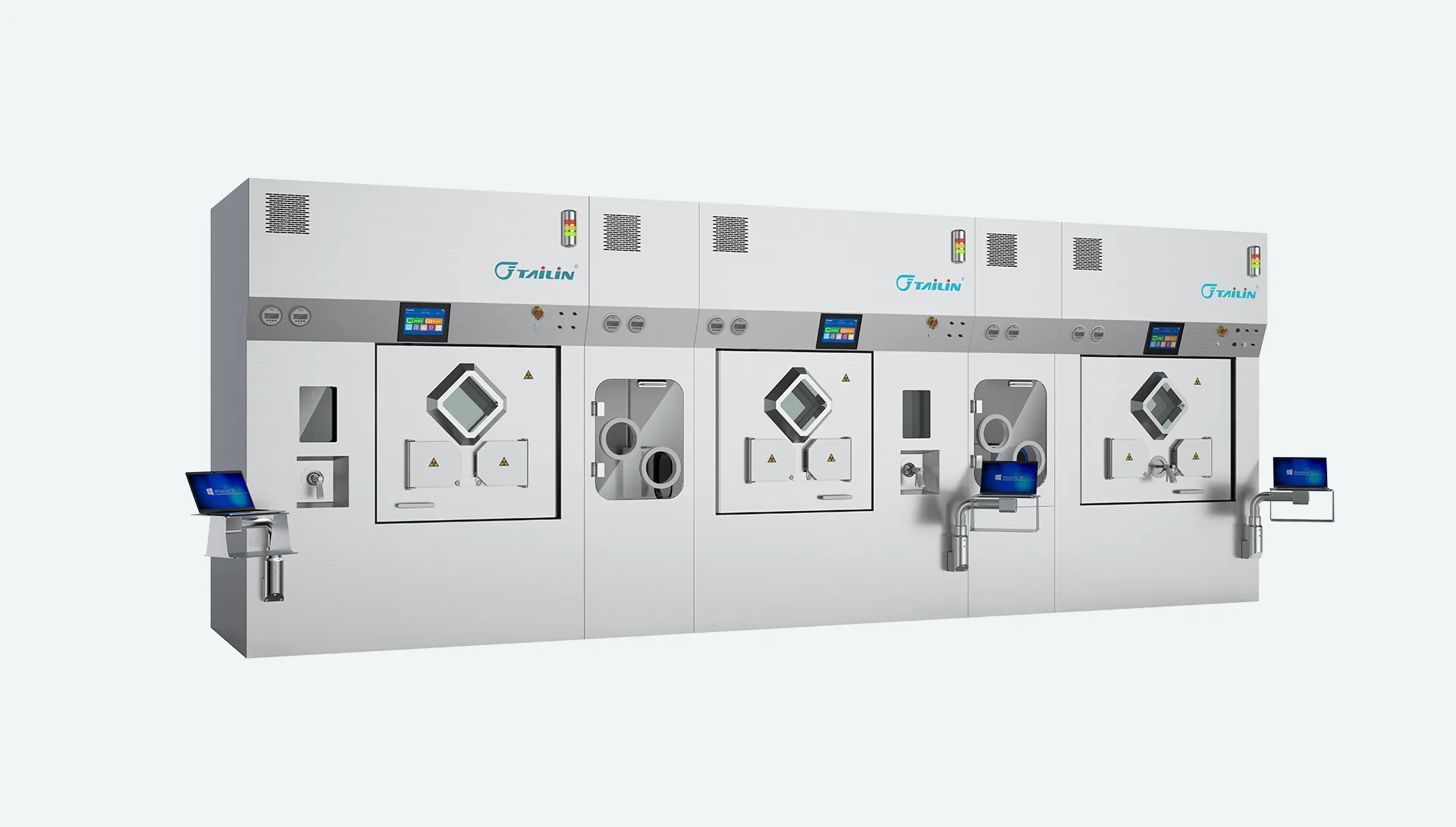

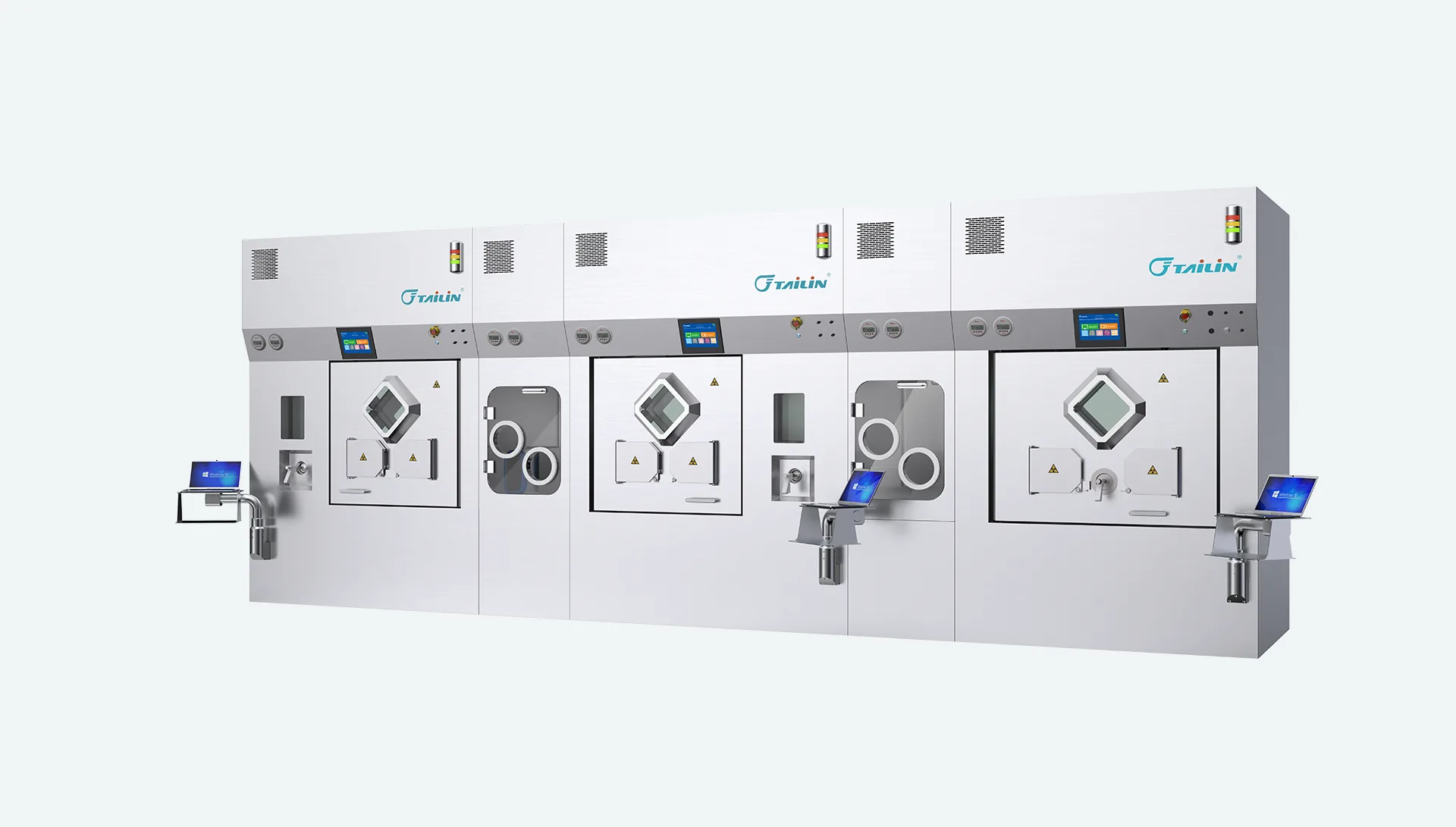

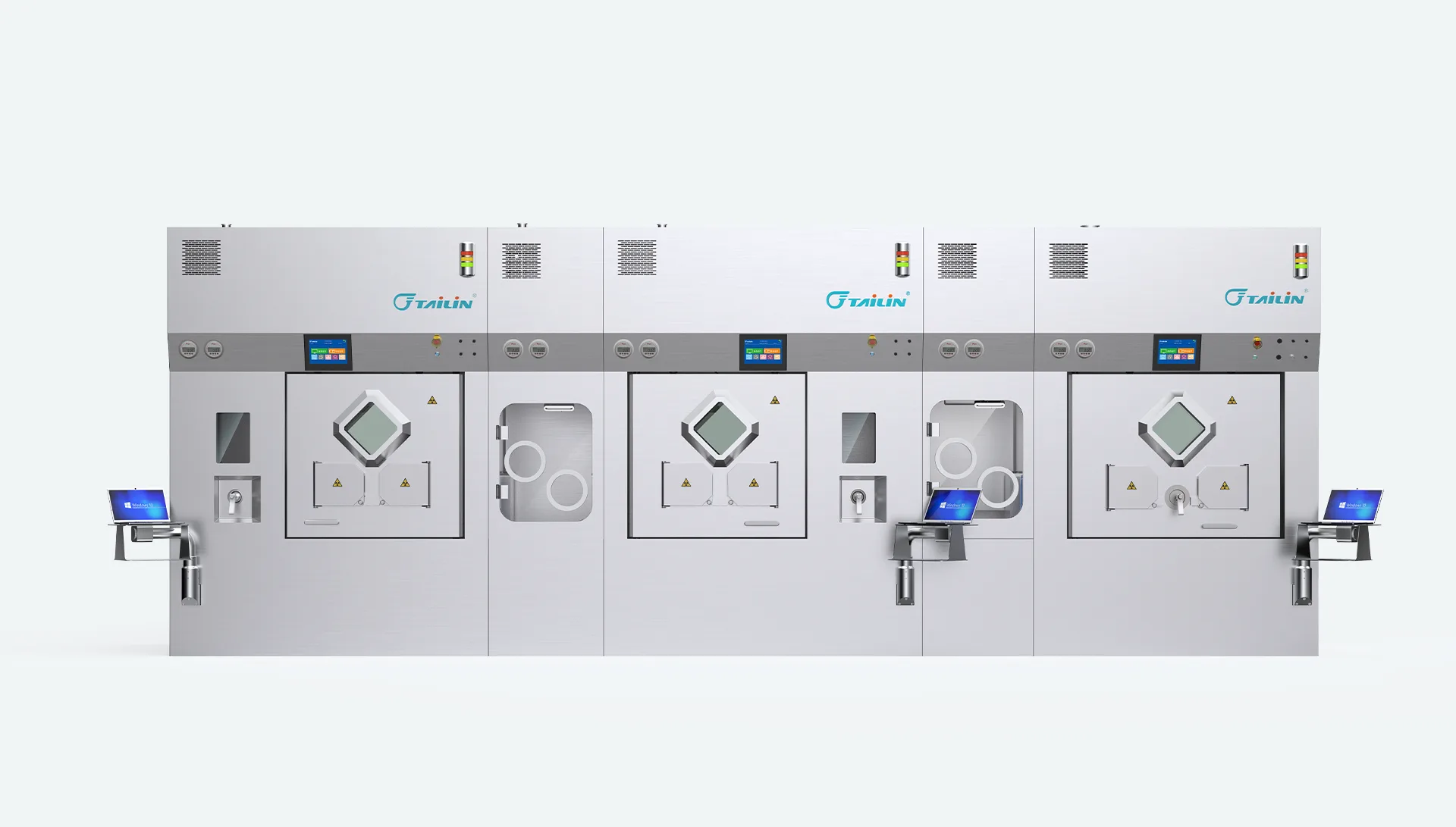

Tailin Hot Cells for Radiopharmaceutical Production combining synthesis and dispensing in one solution, provides high-standard lead shielding and biological cleanliness, ensuring a cGMP-compliant sterile environment and compliance with ICRP radiation safety standards during radiopharmaceutical synthesis and dispensing.
| Airflow: Synthesis hot cell: Turbulent flow / Dispensing hot cell: Vertical unidirectional laminar flow | Control System: Siemens PLC control system, 12' Siemens industrial panel PC |
| Power Supply: AC380V, 50HZ | Killing Rate: ≥log6 |
| Noise: Maximum operating noise <75 dB(A) | H2O2 Leakage: <1 ppm around the production area during sterilization |
| Lighting: 500 lux inside chamber, LED light source | Shielding: Dose rate ≤25 uSv/h at 30 cm from any operator position surface |
| Cleanliness: GMP Grade A | Chamber Tightness: At test pressure (2x working pressure), leakage rate <0.5% of chamber volume per hour |
| *Customized according to user's requirements |
Processing of radionuclides, such as 99mTc, 125I, 131I, 14C, 68Ga, 177Lu, 18F, 90Y, 225Ac, 89Sr and 89Zr
