FHP3

Dry Fogger

The Dry Fogger FHP3 utilizes a micron-level atomization system to convert the liquid solution into fine micron-sized particles, forming a dry mist. In this state, H2O2 is rapidly dispersed into the environment under high-pressure, high-speed airflow, providing broad- spectrum and highly effective disinfection for air and surfaces.

Broad-spectrum disinfection: effective to bacteria (vegetative and spores, viruses and fungi)

The H2O2 concentration is ≤8% with good compatibility

PLC control, sound and light alarm

Features

  • Highly efficient and broad-spectrum sterilization, capable of eliminating various bacteria, viruses, fungi, and spores.
  • No residue, secondary pollution, or harmful substances after bio-decontamination.
  • H2O2 solution concentration 8%, ensuring excellent material compatibility.
  • Ultra-fine atomized particles with uniform diffusion.
  • Light weight, flexible, and easy to move and carry.
  • Intelligent control system with one-button setup and one-button start.
  • Quick and convenient dosing.
  • Remote wireless control for enhanced operational safety.
  • Delay start and appointment start function.
  • Equipped with audio-visual alarm function.

Specifications

Max. Sterilization Space: 150m³ Sterilant: 8% food-grade H2O2 solution
Solution Tank Capacity: 500mL/1L Injection Rate: Approximately 25 g/min

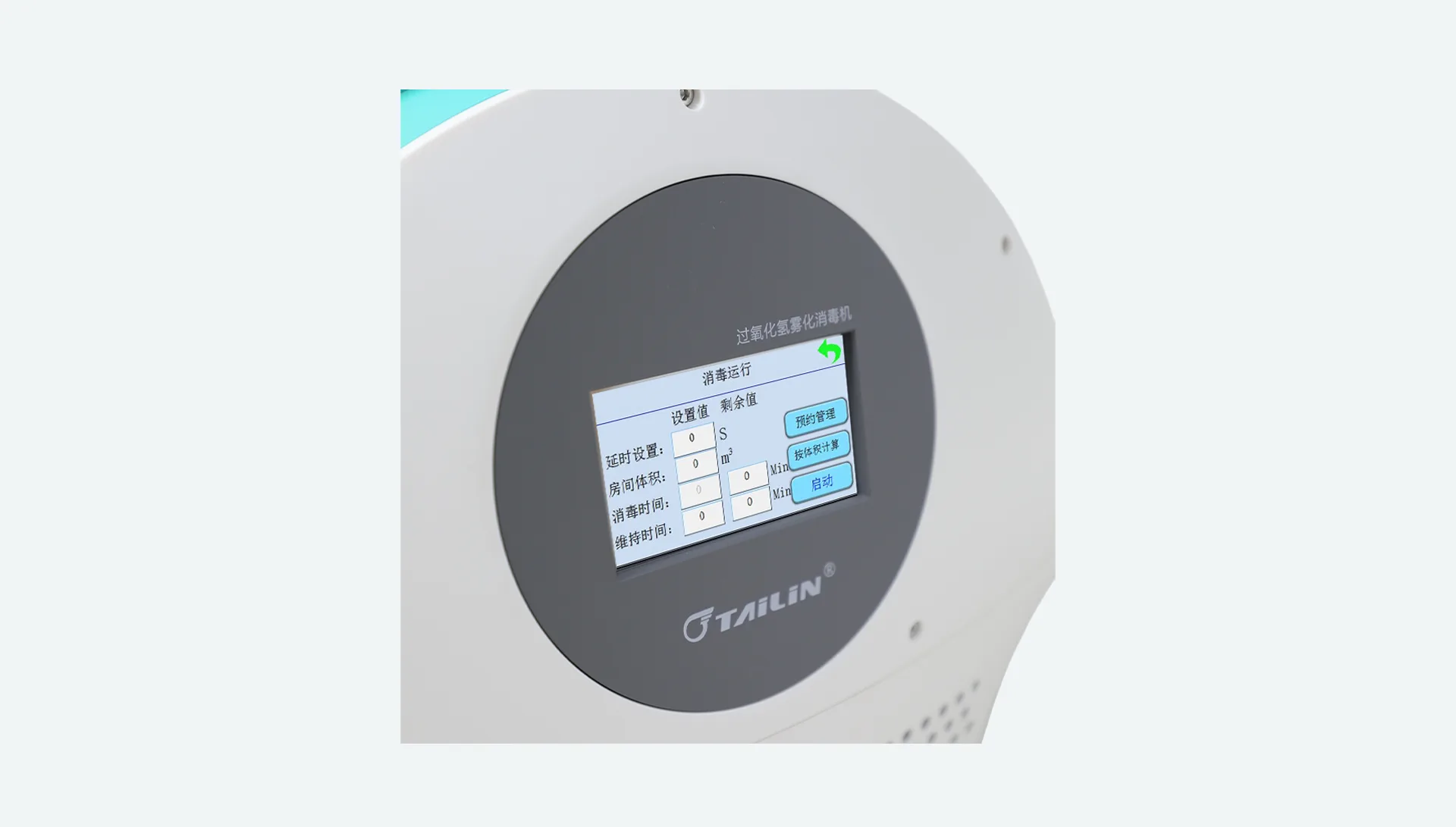

Delay Start: 30s(Adjustable) Operation Mode: 3-inch color touchscreen
Appointment Start: Support Audio-Visual Alarm: Equipped with Tri-Color LED light and buzzer
WIFI Control: Equipped with a remote control (control range: 50–300 meters in open areas) Weight: 9kg
Operating Power: 300W Power Supply: AC 220V±22V, Frequency 50Hz ±1Hz (Standard Version), DC 24V(Battery Version)
Dimensions(mm): 380x260x380 (W×D×H) Model: Standard version / battery version

Applications

Widely used for bio- decontamination in enclosed spaces such as biosatety laboratories, research institutes, pharmaceutical companies, animal facilities, hospitals, and ambulances.

Pharmaceutical and Biotech Production

Medical and Laboratory Facilities

Public Health Industry
