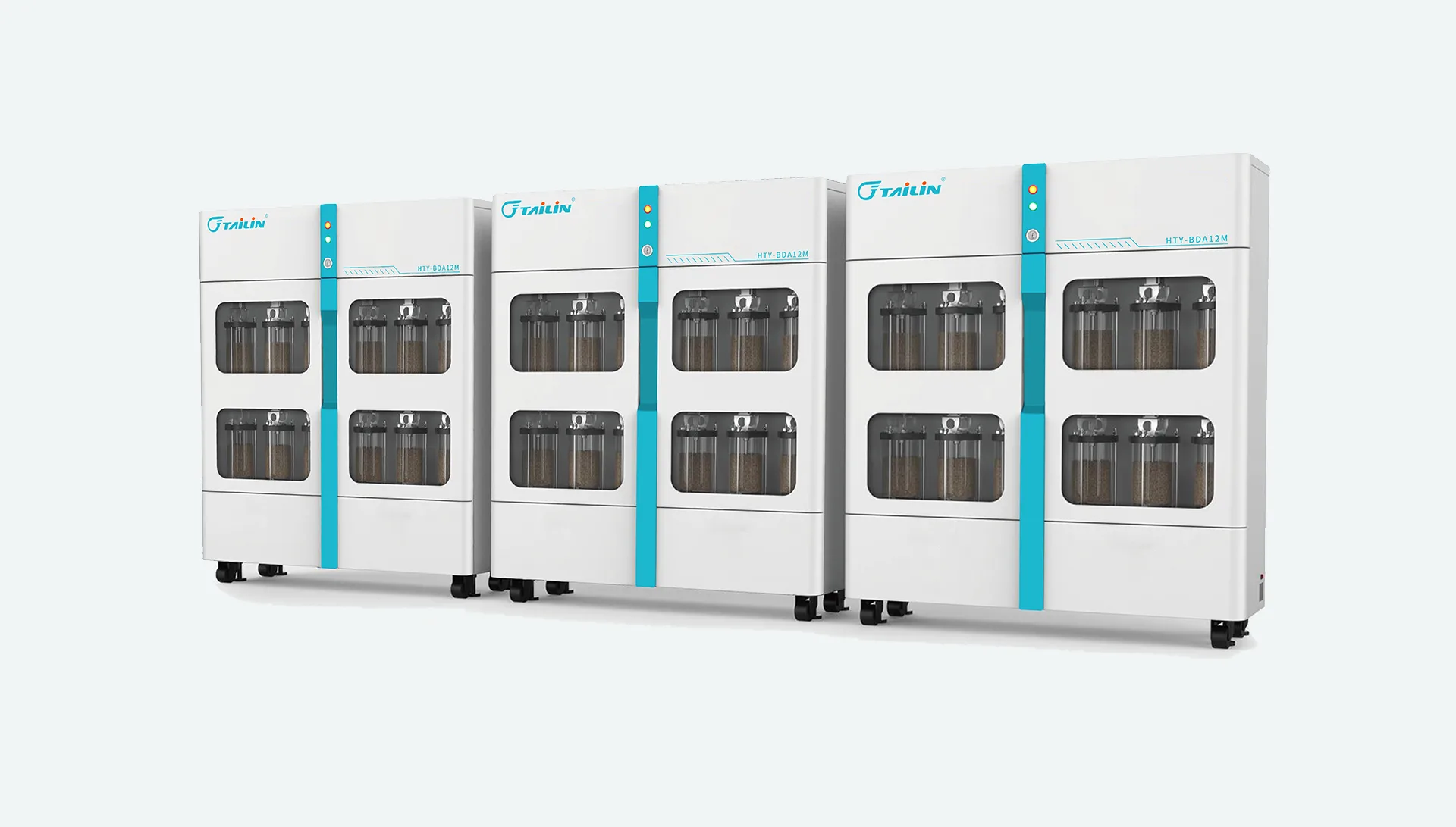

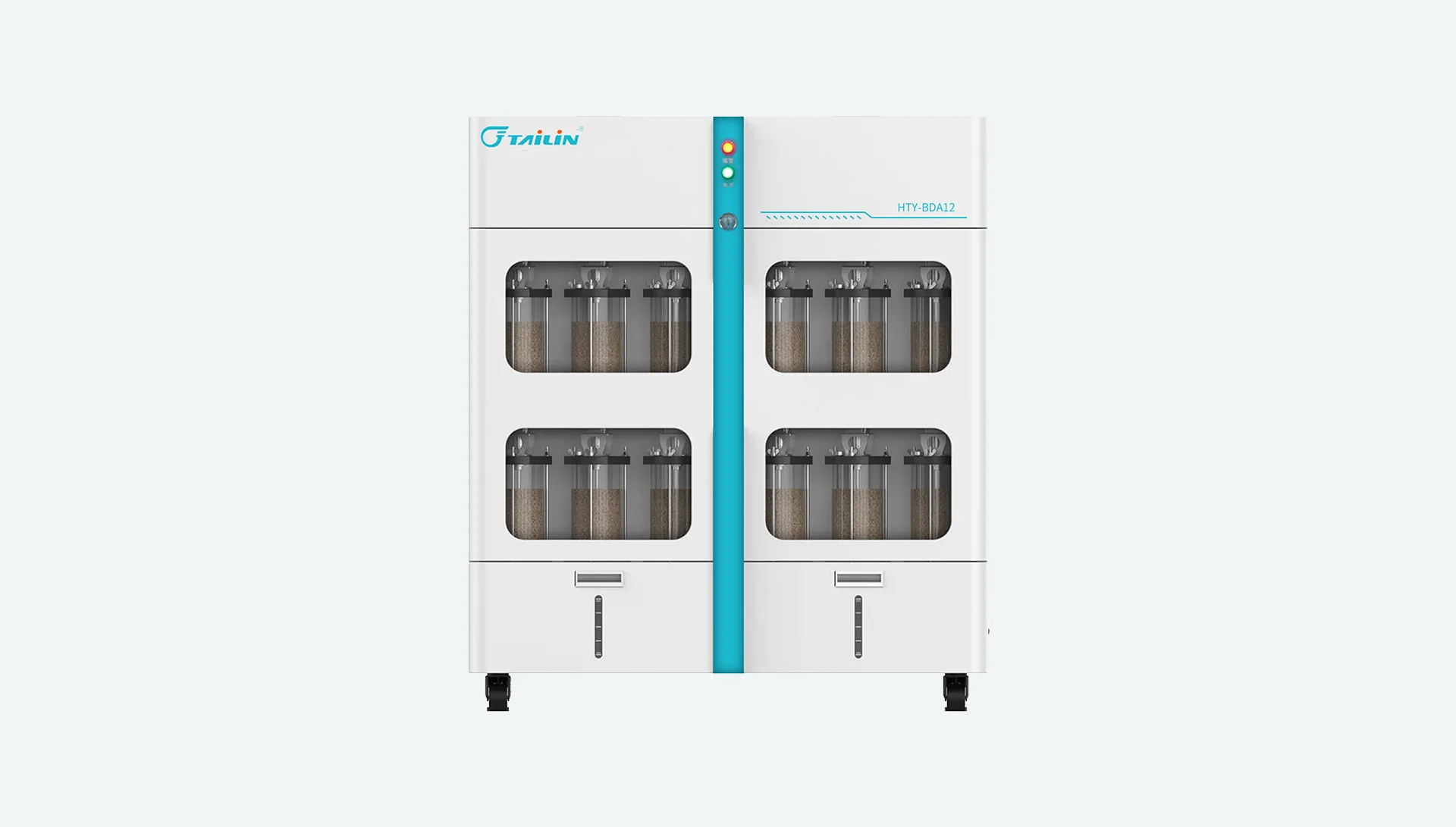

Biodegradation Analysis System: Under controlled conditions, the amount of carbon dioxide produced during the biodegradation of materials is measured using the principle of non-dispersive infrared detection. Other sensors can also detect specific gases, such as methane, oxygen and hydrogen sulfide.
The sample is placed in a sealed space. Under constant temperature conditions, when the vapor pressure of the sample and the surrounding air reach equilibrium, the water vapor pressure of the gas space is taken as the sample vapor pressure. That is, the decimal form of the relative humidity of the air in the top space of the sample chamber is the water activity of the sample.
| Cultivation Method: 58℃ controlled composting biodegradation | Dimension: 172cmx65cmx185cm |
| CO2 Sensor: (0~5%)±2%F.S. | O2 Sensor: (0~25%)±5% |
| Temperature Control Range: Room temperature~70℃±2℃ | Alarm Signal: PC and mobile phone are linked |
| CO2 Detection Method: Infrared NDIR method/ TDLAS method/conductivity method optional | Power: 1200W |
| CO2 Monitoring Mode: Online continuous CO2 detection/ accumulation method DIC detection optional | Power Supply: (200-240)VAC, 50/60Hz |
| Number of Channels: 12, 24, 36 bits optional | Gas Flow Monitoring: Automatic mass flow control (0~500)mL/min |
| Reactor Capacity: 3L with automatic stirring device | Weight: 280kg |
| Software & System: PC-side control Tailin MULTI software | Ambient Temperature: (5-40)℃, (5-90)%RH non-condensing |
| Temperature & Humidity Monitoring: Temperature: (0-95)℃, Humidity: (0~90)%RH | Safety Protection: Heater power-off alarm; sensor power-off alarm; overheating alarm; leakage protection |
| Oxygen Monitoring: Electrochemical oxygen concentration monitoring |

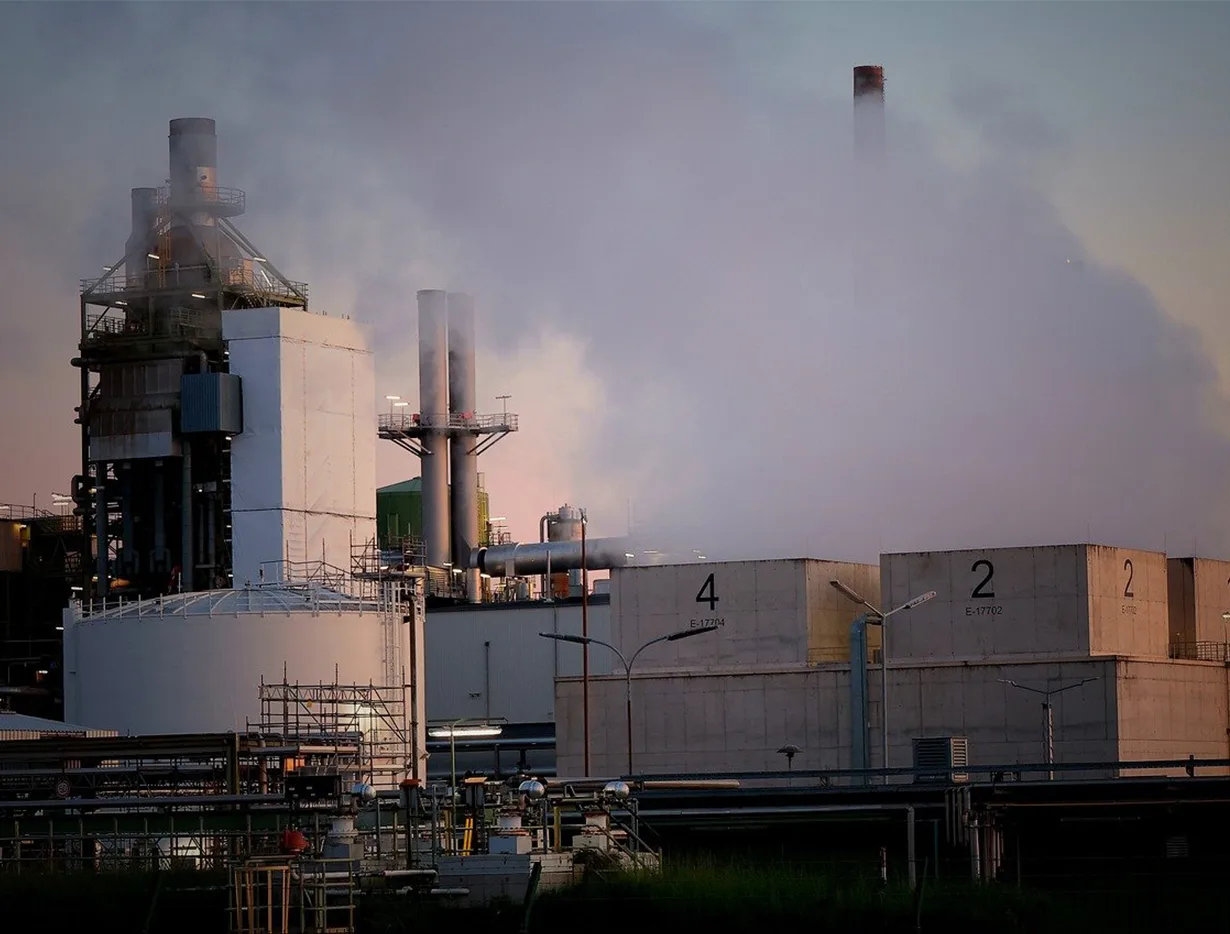

This analytical system applies to the degradation performance analysis of various fully biodegradable materials, mainly including mainstream biodegradable plastics such as polylactic acid (PLA), polyhydroxy acid (PHA), polycaprolactone (PCL), polyester acid (PBS), and polyvinyl alcohol (PVA), and mainly involves industries such as environmental monitoring and the chemical industry.
